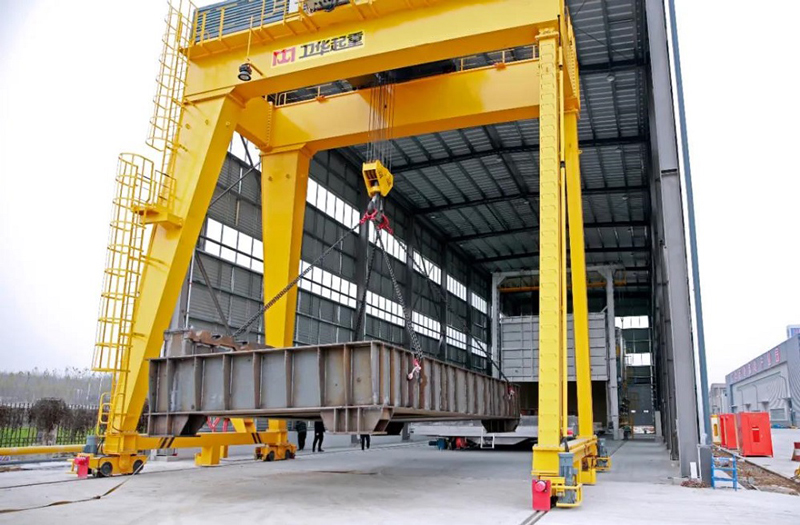

PITTSBURGH Gantry Crane

Embodying the legacy of American industrial strength, the Pittsburgh Gantry Crane is engineered for reliability, durability, and peak performance in the most demanding material handling environments. Designed with the precision and ruggedness Pittsburgh's manufacturing heritage is known for, these cranes provide a versatile and cost-effective lifting solution for workshops, warehouses, fabrication shops, construction sites, shipyards, and outdoor storage yards.

Capacity: 2 Ton - 50 Ton+ (4,000 lbs - 100,000+ lbs)
Span: 10 ft - 60 ft+ (3m - 18m+)
Lifting Height: 8 ft - 30 ft+ (2.4m - 9m+)
Beam Type: Wide Flange (WF) / Box Girder / Truss

Send Email Chat Now

Table Of Contents Show

PITTSBURGH Gantry Crane Core Features & Benefits

1. Unmatched Durability & Construction:
- Heavy-Duty Steel Fabrication: Built using high-grade American steel, featuring reinforced beams, legs, and bracing designed to withstand rigorous daily use, heavy loads, and harsh conditions.
- Robust Welding & Assembly: Precision welding and quality assembly processes ensure structural integrity and long-term reliability, minimizing downtime and maintenance costs.
- Corrosion Resistance (Options Available): Standard protective coatings; optional galvanization or specialized paints available for superior resistance in corrosive environments (marine, chemical).
2. Superior Lifting Performance:
- Wide Capacity Range: Available in capacities from 2 tons (4,000 lbs) up to 50 tons (100,000 lbs) or more, tailored to your specific lifting requirements.
- Precise Load Control: Smooth-operating trolleys and hoists (electric chain, wire rope, or manual) ensure accurate positioning and safe handling of valuable or sensitive loads.
- Customizable Spans & Heights: Designed to fit your workspace perfectly, with adjustable heights and spans engineered to maximize coverage and operational efficiency.
3. Enhanced Versatility & Mobility:
- Fixed, Adjustable, or Mobile Options: Choose from stationary models for dedicated workstations, height-adjustable legs for variable clearance needs, or fully mobile cranes with heavy-duty locking casters for ultimate flexibility around the shop or yard.
- Outdoor/Indoor Capability: Engineered to perform reliably both indoors and outdoors, handling weather elements when necessary.
- Modular Design: Facilitates easier installation, potential future reconfiguration, or relocation.
4. Operational Safety & Efficiency:
- Inherent Stability: Wide leg bases and robust construction provide exceptional stability during lifting operations, even at full capacity.
- Integrated Safety Features: Designed to meet or exceed relevant ANSI/ASME B30 safety standards. Options include overload protection, limit switches, and emergency stop systems.
- Increased Productivity: Eliminates bottlenecks by providing dedicated lifting points, reducing manual handling, and speeding up material movement across work cells or storage areas.
- Clear Floor Space: Unlike bridge cranes, gantries require no supporting runway columns, freeing up valuable floor space beneath and around the crane.
5. Pittsburgh Engineering Advantage:
- Proven Design: Leverages decades of experience in heavy machinery and structural engineering.
- Quality Assurance: Rigorous quality control and load testing ensure every crane performs reliably and safely.
- Made for American Industry: Built to handle the demands of modern manufacturing, construction, and logistics.

PITTSBURGH Gantry Crane

Typical Specifications (Customizable)

Feature	Specification Range
Capacity	2 Ton – 50 Ton+ (4,000 lbs – 100,000+ lbs)
Span	10 ft – 60 ft+ (3m – 18m+)
Lifting Height	8 ft – 30 ft+ (2.4m – 9m+)
Beam Type	Wide Flange (WF) / Box Girder / Truss
Leg Type	Fixed Height / Adjustable / Mobile
Hoist Type	Electric Chain Hoist / Electric Wire Rope Hoist / Manual Chain Hoist
Control	Pendant / Radio Remote
Wheel Type	Steel / Polyurethane / Nylon
Finish	Industrial Enamel Paint / Galvanized
Standards	Meets or Exceeds ANSI/ASME B30

PITTSBURGH Gantry Crane

PITTSBURGH Gantry Crane Applications

1. Manufacturing & Fabrication Shops
2. Warehouse Loading/Unloading & Storage
3. Construction Sites (Equipment, Materials)
4. Maintenance & Repair Facilities
5. Shipbuilding & Dry Dock Operations
6. Outdoor Storage Yards (Pipe, Steel, Lumber)
7. Machinery Installation & Relocation
8. Foundries and Heavy Industrial Plants
9. Event Staging & Rigging

application

Why Choose a Pittsburgh Gantry Crane?

1. Durability You Can Trust: Built from the ground up for demanding industrial use.
2. Precision Engineering: Smooth, reliable operation for safe and efficient lifting.
3. Tailored Solutions: Custom-designed to fit your exact space and lifting requirements.
4. Cost-Effective Lifting: Avoid the high cost and complexity of permanent overhead crane systems.
5. Maximized Productivity & Safety: Improve workflow efficiency while reducing manual handling risks.
6. Pittsburgh Pride: Invest in robust American manufacturing heritage.

case

factory

Ready to Lift Your Productivity?

Contact us today for a detailed quote and let our engineers design the perfect Pittsburgh Gantry Crane solution for your specific lifting challenges. Experience the strength, reliability, and efficiency that define Pittsburgh-built industrial equipment.
