Gantry Crane for Highway Construction

In the fast-paced, high-stakes environment of highway and bridge construction, efficiency, safety, and precision are non-negotiable. Introducing the Titan Series Gantry Crane – a purpose-engineered lifting system designed to overcome the unique challenges of linear infrastructure projects. This robust crane provides unparalleled versatility and power for handling heavy materials directly over the work site, dramatically accelerating project timelines while enhancing on-site safety.

Lifting Capacity: 10 to 500+ Tons (Customizable)
Span (Width): 15 to 40 Meters (Customizable)
Lifting Height: Up to 30 Meters
Travel Speed: 0-20 m/min (fully loaded)

Send Email Chat Now

Table Of Contents Show

Key Features & Design Advantages

Our gantry cranes are built from the ground up for the demanding conditions of highway construction.

1. Unobstructed Work Platform: With a design that spans the entire construction area—including lanes, medians, and foundation works—the Titan Crane provides clear, unrestricted access beneath its legs. This allows trucks, excavators, and crews to operate freely while lifting operations continue overhead.
2. Robust Structural Design: Fabricated from high-strength, low-alloy (HSLA) steel, the main girder and supporting legs offer exceptional rigidity and resistance to deflection. This ensures stable and precise lifting of heavy loads, even in challenging weather conditions.
3. Exceptional Mobility & Flexibility: Mounted on heavy-duty rubber-tired wheels or powered rail systems, our cranes offer superb mobility along the length of the project. This eliminates the need for repeated setup and teardown of multiple cranes, providing a continuous lifting solution as work progresses.
4. Precision Hoisting Control: Equipped with state-of-the-art variable frequency drives (VFDs) and ergonomic radio remote controls, operators can perform micro-speed movements for pinpoint accurate placement of sensitive prefabricated elements like bridge beams, concrete barriers, and formwork.
5. High-Capacity Lifting: Engineered to handle the heaviest loads on site, the Titan Series is available in capacities ranging from 10 tons to over 500 tons, making it ideal for placing pre-cast concrete girders, large rebar cages, and construction machinery.

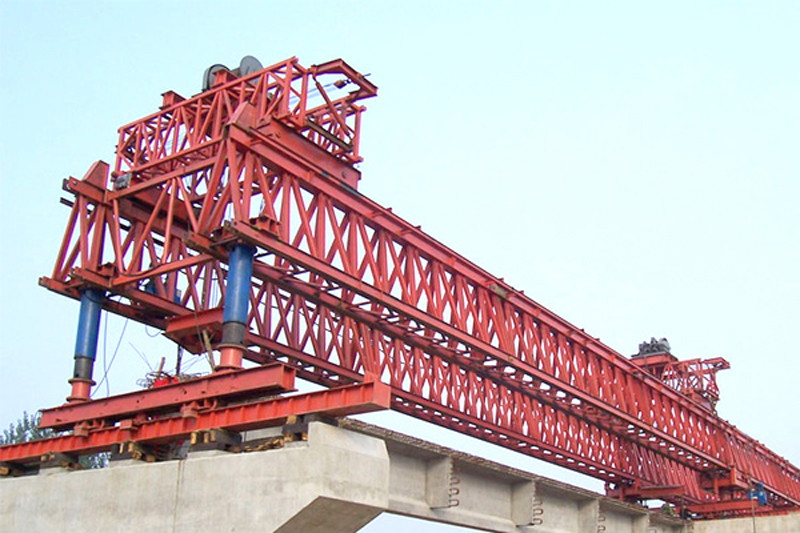

gantry crane for highway construction

Core Applications on the Highway Site

The Titan Series Gantry Crane is a multi-role workhorse essential for numerous tasks:

Bridge Girder Placement	The primary application, enabling the safe and precise installation of pre-stressed concrete and steel bridge girders.
Handling Prefabricated Elements	Efficiently moving and positioning large concrete barriers (Jersey barriers), drainage sections, and sign supports.
Foundation & Piling Work	Assisting in the placement of heavy reinforcement cages and piling materials into excavated shafts.
Formwork and Shoring Systems	Lifting, moving, and positioning heavy formwork and modular shoring systems for pier and deck construction.
General Material Handling	Transporting machinery, tools, and bulk materials across the sprawling construction site, reducing reliance on less efficient equipment.

Technical Specifications (Standard Model – Titan 100)

Feature	Specification
Lifting Capacity	10 to 500+ Tons (Customizable)
Span (Width)	15 to 40 Meters (Customizable)
Lifting Height	Up to 30 Meters
Travel Speed	0-20 m/min (fully loaded)
Hoisting Speed	0-5 m/min (main hoist, with VFD control)
Power Supply	Diesel Generator Set or External Power (Optional)
Control System	Industrial Radio Remote Control (IP65 rated)
Safety Systems	Overload Limit Switch, Anti-Collision, Emergency Stop, Wind Speed Indicator

Note: All specifications are customizable to meet the exact requirements of your project.

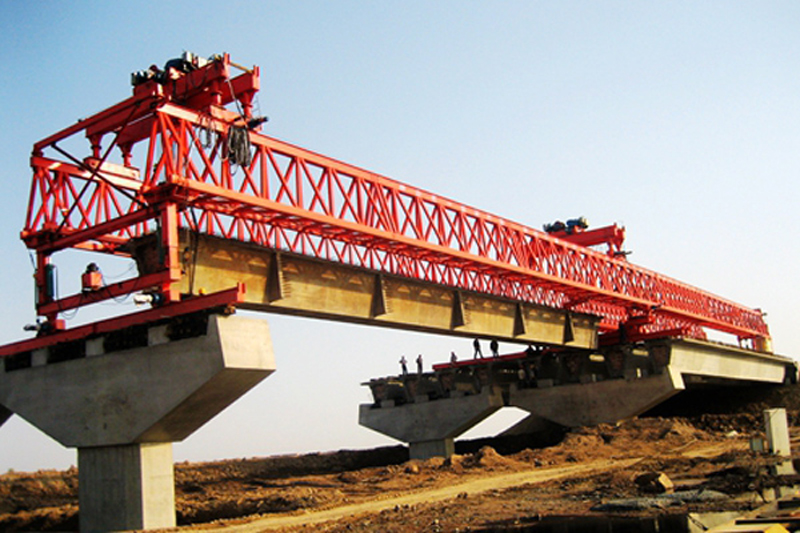

gantry crane for highway construction

Why Choose Our Gantry Crane for Your Project?

1. Accelerated Project Timelines: Dramatically reduce critical path time by enabling continuous, parallel work streams.
2. Enhanced Safety Profile: Reduces the risks associated with lifting over live traffic or congested work areas. Advanced safety systems protect both personnel and assets.
3. Superior Cost-Efficiency: A single Titan Crane can replace multiple smaller cranes and crews, lowering total equipment and labor costs.
4. Proven Durability: Built to withstand dust, vibration, and the 24/7 operational demands of major infrastructure projects.
5. Expert Support: From initial site planning and crane specification to on-site commissioning and operator training, our team of engineers provides end-to-end support.

case

smart manufacturing

Conclusion: Build Smarter, Build Faster

In an industry where time is money and safety is paramount, the Titan Series Gantry Crane is the intelligent choice for modern highway construction. It is more than a piece of equipment; it is a foundational component of your project’s success.

Contact our engineering team today for a free consultation and a customized solution for your specific project requirements. Let us help you build the future of transportation, efficiently and safely.
