Designed to handle the most demanding tasks with ease, this crane is the cornerstone of efficiency in workshops, fabrication yards, shipping docks, and outdoor storage areas. It provides a cost-effective and flexible alternative to overhead bridge cranes, offering free-standing movement without the need for a permanent runway system.

Key Features & Design Advantages

• 1. Exceptional Structural Integrity:

  • Fabricated from high-grade, welded steel to ensure maximum rigidity and durability under full 25-ton (50,000 lbs) load capacity.

  • Optimized box-girder or truss-style design minimizes deflection, providing stable and precise load control.

  • Robust legs and cross-beams are engineered to withstand rigorous daily use and harsh environmental conditions.

• 2. Superior Mobility and Flexibility:

  • Available in both fixed-height and adjustable-height models to suit various workspace requirements and ceiling clearances.
  • Features four-end steering capabilities. Options include dual-driven motorized travel for high-power movement or easy manual pushing for lighter-duty, flexible repositioning.
  • Equipped with large-diameter polyurethane or nylon wheels that protect your floor surfaces and ensure smooth traversal, even over minor imperfections.

• 3. Advanced Hoist and Control System:

  • Integrated with a certified 25-ton capacity electric wire rope hoist, renowned for its reliability and smooth operation.

  • Features variable speed control for precise load positioning, both in lifting and traversing motions.

  • The ergonomic pendant control station provides intuitive operation with all critical functions at the operator’s fingertips, ensuring safety and control.

• 4. Comprehensive Safety Systems:

  • Built to comply with international safety standards (such as ISO, FEM, and ASME).

  • Standard safety features include overload limit switches, upper/lower limit switches, emergency stop buttons, and electrical phase protection.

  • Optional add-ons like anti-collision systems, warning lights, and sirens are available for enhanced safety in complex environments.

Gantry Crane 25 Tons Technical Specifications

Gantry Crane 25 Tons Applications

Our 25-ton gantry crane is the perfect solution for a wide range of industries:

• 1. Steel Fabrication & Machine Shops: Handling large plates, beams, and heavy machinery.
• 2. Shipping and Logistics: Loading and unloading heavy containers, machinery, and cargo.
• 3. Construction Projects: Prefabrication and assembly of large structural components.
• 4. Power Generation & Heavy Equipment Maintenance: Servicing turbines, transformers, and large engines.
• 5. Aerospace and Automotive Manufacturing: Moving large assemblies and molds with precision.

Price Estimate: 25-Ton Gantry Crane

As a general guideline, a standard 25-ton gantry crane can range from approximately $20,000 to over $100,000+ USD.

This wide range exists because a gantry crane is often a custom-engineered product. The final price is determined by your specific requirements.

Key Factors Influencing the Price

Here are the primary variables that will determine your final cost:

1. Type of Gantry Crane:

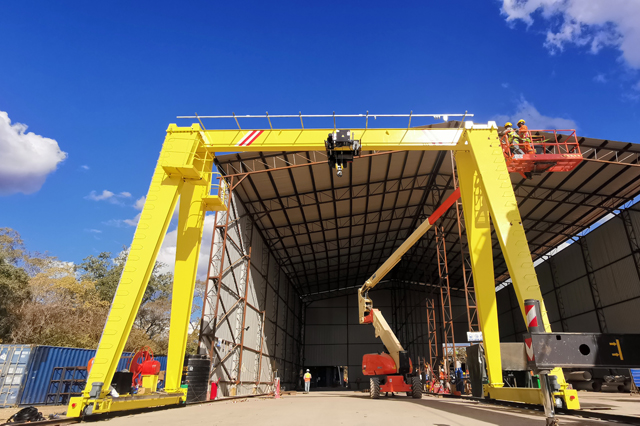

• Full Gantry Crane: Features legs that run on ground rails or wheels on both sides. These are larger, more stable, and more expensive.
• Semi-Gantry Crane: Has one leg that runs on a ground rail and the other end runs on an elevated runway beam attached to a building structure. This is typically a more cost-effective solution if your facility allows it.

2. Span and Lifting Height:

• Span: This is the distance between the legs. A longer span requires a much heavier and stronger main girder to prevent deflection, significantly increasing material and cost. (e.g., a 10-meter span will be far less expensive than a 30-meter span).
• Lifting Height: The required hook travel distance. A greater height needs more hoist rope and a taller supporting structure, adding to the cost.

3. Power and Operation Type:

• Manual (Push) Gantry Crane: The most economical option. The bridge and hoist are moved by hand. Suitable for lighter, infrequent use but impractical for a full 25-ton load over distance.
• Electric Hoist / Manual Travel: The hoist is electric, but the crane is pushed along the runway manually. A mid-range option.
• Fully Motorized / Electric: Both the hoist and the travel motions (long travel and cross travel) are powered by electric motors. This is the most common and efficient setup for a 25-ton crane but also the most expensive.

4. Customization and Features:

• Adjustable Height/Width: Legs that can be adjusted for different projects add complexity and cost.
• Freestanding vs. Rail-Mounted: Freestanding cranes with rubber tires are common. Rail-mounted cranes require track installation but allow for more precise movement on longer runs.
• Control Systems: Standard pendant control is common. Radio remote control is a popular and highly useful upgrade that adds cost.
• Special Environments: Designs for explosive atmospheres, extreme temperatures, or corrosive (e.g., marine) environments require special materials and components, increasing the price.

5. Hoist Quality and Brand:

• The hoist is the heart of the crane. Prices vary greatly between economy brands and premium, internationally certified hoists (e.g., Demag, Kone, CM, Harrington). The choice affects reliability, duty cycle, and safety.

6. Material and Duty Class:

• The crane’s design must match its intended duty cycle (how often and how hard it will be used). A crane for continuous, heavy-duty service (FEM M7 or Class D) will be built with more robust materials and components than one for light, occasional use (FEM M4 or Class A), impacting the price.

Why You Need a Formal Quote

Given these variables, the only way to get an accurate price is to contact a supplier or manufacturer with your specific project details. They will need to know:

• 1. Required Span: Distance between legs.
• 2. Lifting Height: From floor to hook.
• 3. Power Supply: Available voltage (e.g., 480V 3-phase).
• 4. Application: What will you be lifting? (e.g., steel coils, machinery, containers).
• 5. Usage: How many hours per day? Lifts per hour?
• 6. Operating Environment: Indoor workshop? Outdoor? Corrosive?
• 7. Desired Controls: Pendant, radio remote, or cabin.

Always ensure any quote includes delivery, installation, and commissioning costs, which are typically not included in the base equipment price.

To get the best value, it is recommended to obtain quotes from several reputable manufacturers, comparing not only the price but also the quality of components, warranty, and service support.

Why Choose Our 25-Ton Gantry Crane?

• 1. Customization: We offer tailored solutions to meet your exact span, height, and control requirements.
• 2. Quality Assurance: Every crane is rigorously tested and certified before delivery.
• 3. Durability: Built with premium components for a long service life and reduced maintenance.
• 4. Expert Support: From initial consultation to installation and after-sales service, our team of experts is here to support you.

Maximize your operational throughput and ensure a safer working environment with our powerhouse 25-ton gantry crane. It is more than just lifting equipment; it is a strategic investment in your productivity and growth.

Contact us today for a free consultation and quote tailored to your specific material handling needs.
