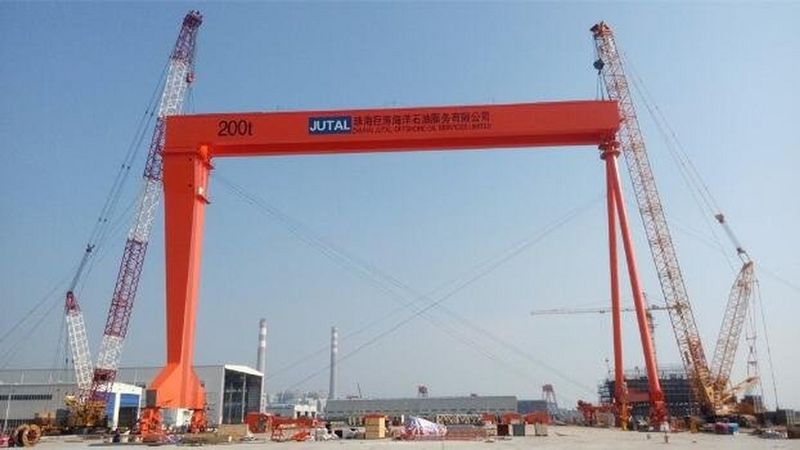

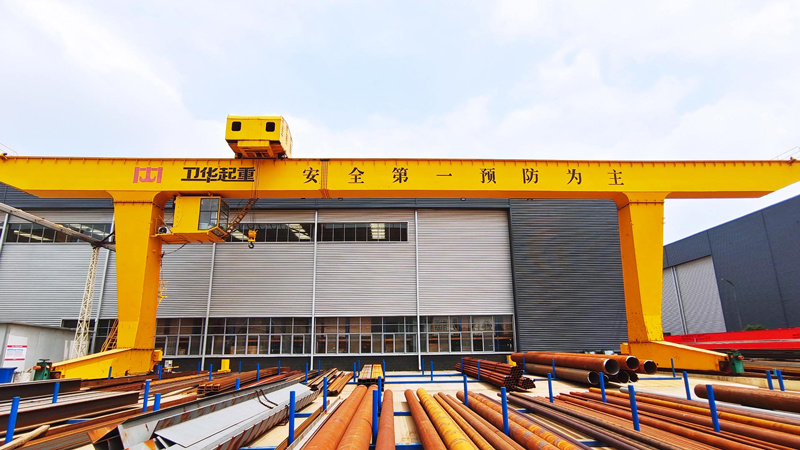

The Gantry Crane Hoist is the cornerstone of versatile and robust lifting solutions, designed to handle demanding tasks where overhead bridge cranes aren't feasible. Combining the mobility of a gantry frame with the powerful lifting capabilities of an integrated hoist, this system delivers unparalleled flexibility and strength for workshops, warehouses, construction sites, shipping yards, and outdoor applications.
1. Unmatched Versatility:
Freestanding Design: Operates independently of building structures, ideal for outdoor use, new construction, or facilities without existing runway beams.
Mobility Options: Choose from fixed, adjustable-width, or fully mobile gantries (on wheels or rails) to suit your specific workflow and space constraints.
Wide Application Range: Perfect for lifting machinery, construction materials, containers, heavy equipment, steel profiles, engines, and more.
2. Robust Lifting Capacity:
Heavy-Duty Performance: Engineered to handle capacities ranging from 1 ton to 500+ tons, meeting the most demanding industrial requirements.
Durable Construction: Fabricated from high-tensile steel, ensuring structural integrity, stability, and long-term reliability under heavy loads.
Precision Hoisting: Integrated electric wire rope or chain hoists provide smooth, controlled lifting and lowering, with variable speed options for precise load positioning.
3. Enhanced Productivity & Safety:
Optimized Workflow: Move heavy loads effortlessly across your workspace, reducing manual handling, minimizing downtime, and accelerating project timelines.
Advanced Control: User-friendly pendant control stations (or optional radio remote controls) offer ergonomic and safe operation from an optimal vantage point.
Comprehensive Safety Systems: Built-in features include overload protection, emergency stop buttons, limit switches (upper/lower), and fail-safe brakes, ensuring operator and load safety as a top priority.
Reduced Floor Obstruction: Keeps valuable floor space clear compared to forklifts or other mobile equipment.
4. Engineered for Performance:
Precision Motion: Smooth trolley travel along the bridge beam and optional traversing gantry movement allow for accurate load placement anywhere within the working area.
Stable & Rigid Design: Optimized beam profiles and sturdy leg construction minimize deflection and ensure safe, stable operation at full capacity.
Low Headroom Options: Available designs maximize usable lifting height under the crane hook, crucial for spaces with height restrictions.
Modular Design: Often configurable with different hoist types (standard, European, or low headroom), trolleys, and span/height dimensions.
5. Dependable & Low Maintenance:
Quality Components: Utilizes industrial-grade motors, gearboxes, wire ropes/chains, and electrical components from reputable manufacturers.
Corrosion Protection: Standard painting or optional galvanization protects against harsh environments (especially important for outdoor use).
Easy Access: Designed for straightforward inspection and maintenance, maximizing uptime.
| Item | Specification |
| Lifting Capacity | 1 ton – 500+ tons |
| Span (Width) | 3 meters – 40+ meters |
| Lifting Height | 3 meters – 30+ meters (under hook) |
| Hoist Type | Electric Wire Rope Hoist (Standard, European, Low Headroom) or Electric Chain Hoist |
| Work Class | A3 to A7 (Light to Very Heavy Duty) |
| Travel Speeds | Hoisting, Trolley Travel, Gantry Travel (all variable speed options available) |
| Control | Pendant Control (8-Button, 2-Speed) / Radio Remote Control (Optional) |
| Power Supply | 3-Phase, 380V/400V/415V 50Hz or 440V/480V 60Hz (Custom voltages available) |
| Duty Cycle | Defined per FEM/ISO/DIN standards based on usage intensity |
| Environmental Rating | IP54, IP55 (or higher for special conditions) |
| Safety Features | Overload Limiter, Upper/Lower Limit Switches, Emergency Stop, Brakes (Hoist, Trolley, Gantry), Warning Devices |
1. Radio Remote Control Systems
2. Anti-Collision Systems (for multiple cranes)
3. Variable Frequency Drives (VFD) for ultra-smooth control
4. Weighing Systems (Load Cells)
5. Crane Scales
6. Specialized Hooks & Lifting Attachments
7. Cabins for Operator
8. Festooning/Cable Reel Systems
9. Advanced Lighting Packages
10. Galvanization or Special Coatings
1. Manufacturing & Assembly Plants
2. Warehouses & Logistics Centers
3. Construction Sites (precast concrete, steel erection)
4. Shipping Ports & Container Terminals
5. Railway Workshops
6. Power Plants & Heavy Machinery Maintenance
7. Foundries & Steel Service Centers
8. Shipbuilding & Repair Yards
9. Mining & Heavy Industry
10. Anywhere requiring flexible, heavy lifting without fixed runways.
Certifications & Standards: Compliant with ISO, FEM, DIN, CMAA, AS, and other relevant international safety and design standards (specifics depend on region). CE Marking available.
We deliver engineered lifting solutions built for performance, safety, and longevity. Our gantry crane hoists are custom-configured to your exact capacity, span, height, and operational needs. Backed by rigorous testing, quality manufacturing, and expert support, we provide the reliable partner you need to lift your productivity.
Ready to elevate your material handling? Contact us today for a customized quote and expert consultation!
