If you’re specifying equipment for a new facility, designing a material handling workflow, or just curious about industrial machinery, you’ve likely encountered the terms “Overhead crane” and “gantry crane“. At first glance, they seem to perform the same fundamental task: they are both overhead cranes designed to lift and move heavy loads horizontally.

However, the key difference between them is not in what they do, but in how they are supported. This single distinction dictates where they are used, their cost, and their flexibility. Let’s break it down.

Double girder gantry crane

The Overhead Crane: The Fixed, High-Capacity Workhorse

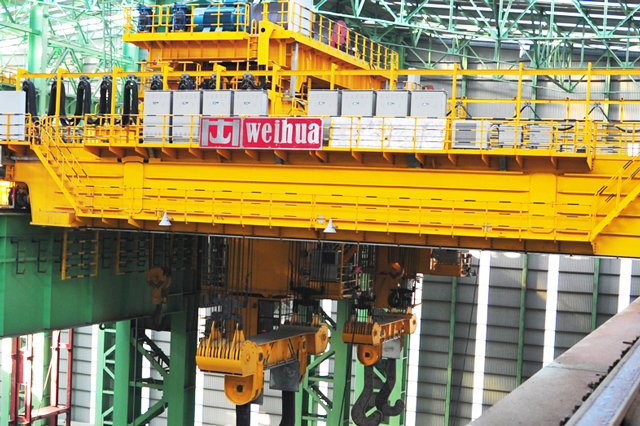

Double girder overhead crane

A Overhead crane, often called an bridge crane or EOT (Electric Overhead Traveling) crane, is permanently installed within a building’s structure.

• 1. Support System: It consists of a horizontal beam (the bridge) that runs on fixed rails attached to the building’s support columns or runway beams high up on the walls. The hoist trolley travels along the length of the bridge, and the entire bridge assembly moves along the runways, covering a rectangular area on the floor below.

• 2. Key Feature: Fixed Infrastructure. The crane is an integral part of the building itself. It relies on the structure’s strength to support its load capacity.

• 3. Ideal For:

  • Manufacturing facilities and factories with dedicated production bays.

  • Machine shops and warehouses with high, consistent throughput in a fixed area.

  • Applications requiring very heavy lifting (can be hundreds of tons) in a confined, indoor space.

• 4. Pros:

  • Maximizes floor space as no supporting legs get in the way.

  • Offers superior stability and higher lifting capacities due to fixed, robust support.

  • Provides precise load control over a defined area.

• 5. Cons:

  • Requires a permanent, costly installation tied to the building.

  • Limited to the area covered by the runway length.

  • Not portable or adaptable.

Think of a overhead crane as a reliable, high-performance train system on a fixed track, built for a specific, high-volume route.

The Gantry Crane: The Flexible, Free-Standing Solution

A gantry crane is a portable or semi-permanent solution that is supported by its own rigid, freestanding framework, which rests on the floor via legs equipped with wheels or castors.

• 1. Support System: It has a horizontal beam (the bridge) like an overhead crane, but it is supported by two or more leg sets that form a “gantry.” These legs move on rails embedded in the floor or directly on a firm, flat surface.

• 2. Key Feature: Mobility and Independence. It is a self-supporting structure that doesn’t put any load on the building. Some smaller versions are even hand-pushed (portable gantries), while larger ones are electrically powered.

• 3. Ideal For:

  • Outdoor applications like shipping yards, scrap metal processing, and construction sites.

  • Indoor workshops that need flexible lifting in different areas or cannot modify the building structure.

  • Loading and unloading trucks or railcars where a fixed crane isn’t practical.

• 4. Pros:

  • Highly versatile and mobile; can be moved to where the work is.

  • Can be used both indoors and outdoors.

  • No need for expensive, permanent building modifications.

  • Frees up aisle space as it doesn’t require high runway beams.

• 5. Cons:

  • Uses valuable floor space as the supporting legs are on the ground.

  • Generally has a lower lifting capacity compared to a similarly priced fixed overhead crane.

  • Can be less stable for extreme loads due to its freestanding nature.

Think of a gantry crane as a flexible, all-terrain vehicle. It can go almost anywhere it’s needed, providing lifting power on demand.

Side-by-Side Comparison

Which One is Right For You?

The choice ultimately comes down to your application:

• Choose a Overhead Crane if you have a dedicated, indoor space for repetitive lifting of heavy materials and you want to maximize floor space and efficiency for the long term.

• Choose a Gantry Crane if you need flexibility, work both inside and outside, have a temporary project, or cannot modify your building’s structure.

Understanding this fundamental difference in support structure is the first step to selecting the right tool for the job, ensuring safety, efficiency, and cost-effectiveness in your operations.
