Electric Gantry Crane Key Features & Benefits

• 1. Pure Electric Operation:

  • Eco-Friendly: Zero on-site emissions, contributing to a cleaner work environment and meeting stringent environmental regulations.
  • Energy Efficient: Significantly lower operating costs compared to diesel or pneumatic alternatives. Regenerative braking options further enhance efficiency.
  • Quiet Performance: Ideal for noise-sensitive areas like indoor workshops, hospitals near construction, or urban settings.
  • Reduced Maintenance: Eliminates the need for engine oil, filters, fuel systems, and associated maintenance, lowering TCO (Total Cost of Ownership).

• 2. Robusto & Stable Structure:

  • High-Quality Steel: Fabricated from premium-grade steel (POR EXEMPLO, Q235B/Q345B) for exceptional strength and longevity.
  • Optimized Design: Rigorous FEM (Finite Element Analysis) ensures optimal structural integrity under full load, minimizing deflection.

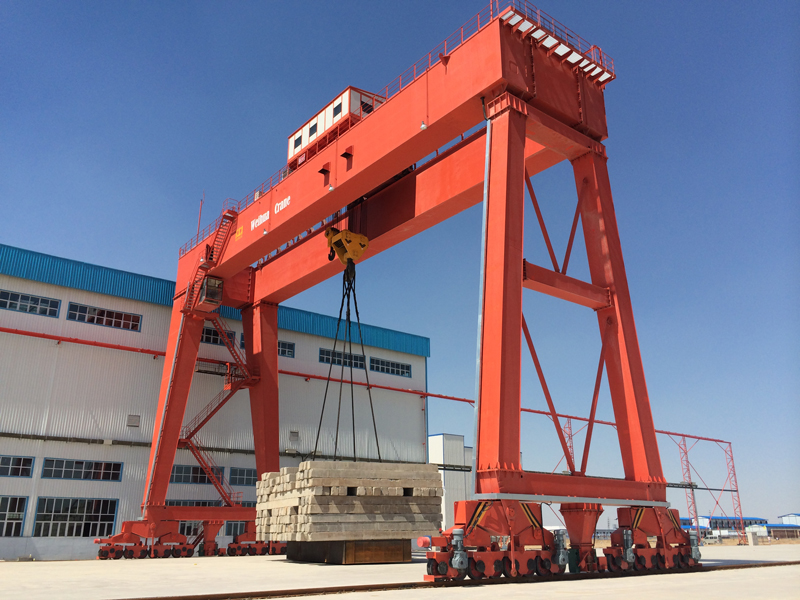

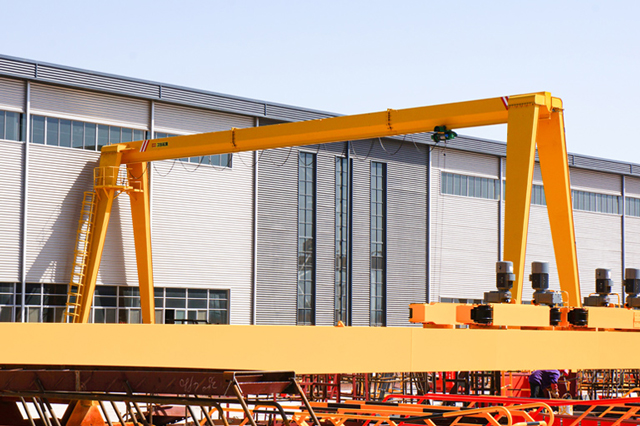

  • Double Girder or Single Girder Configurations: Available to suit various capacity (POR EXEMPLO, 5t – 500t+) and span requirements.
  • Stable End Trucks: Equipped with high-performance drive wheels, bearings, and often anti-derailment devices for safe and stable travel, even on slightly uneven surfaces.

• 3. Advanced Electric Drive & Control:

  • Precise Variable Frequency Drives (VFDs): Standard on hoisting and travel motions for smooth acceleration/deceleration, accurate positioning, reduced load swing, and minimized mechanical stress.
  • High-Efficiency Motors: AC motors provide reliable power with excellent torque characteristics.
  • Intelligent Control System: Pendant control (standard) or advanced radio remote control options offer intuitive and safe operation from the optimal vantage point.
  • Festoon Systems or Cable Reels: Ensure organized and protected power/data cable management during crane travel.

• 4. High-Performance Electric Hoist:

  • Integrated Lifting: Features a rugged, high-duty cycle electric wire rope hoist as standard, specifically matched to the crane’s capacity.
  • Precise Load Control: Smooth hoisting and lowering speeds with reliable braking systems.
  • Safety Features: Hoists include critical safety devices like overload limiters, upper/lower limit switches, and emergency stop functions.

• 5. Enhanced Safety & Reliability:

  • Comprehensive Safety Devices: Includes travel limit switches, bumper buffers, anti-collision systems (for multiple cranes), botões de parada de emergência, and audible/visual alarms.
  • Fail-Safe Braking: Dual braking systems on critical motions (hoist and long travel) ensure safe stopping.
  • Rigorous Testing: Each crane undergoes thorough load testing and inspection before shipment, adhering to international standards (ISO, FEM, CMAA, COMO, GOST, etc.).

• 6. Unmatched Flexibility & Personalização:

  • Indoor/Outdoor Use: Can be supplied with weatherproofing (IP rating) and corrosion protection (painting or galvanizing) for outdoor applications.
  • Tracked or Rubber-Tired: Choose between rail-guided travel for precise paths or rubber tires (often powered) for greater mobility on firm surfaces.
  • Período & Height Adaptability: Customizable span widths and lifting heights to fit your specific workspace layout.
  • Modular Design: Facilitates easier transportation, assembly, and potential future modifications.

Technical Specifications (Typical Range – Customizable)

Electric Gantry Crane Applications

• 1. Manufacturing & Assembly Plants

• 2. Warehousing & Distribution Centers

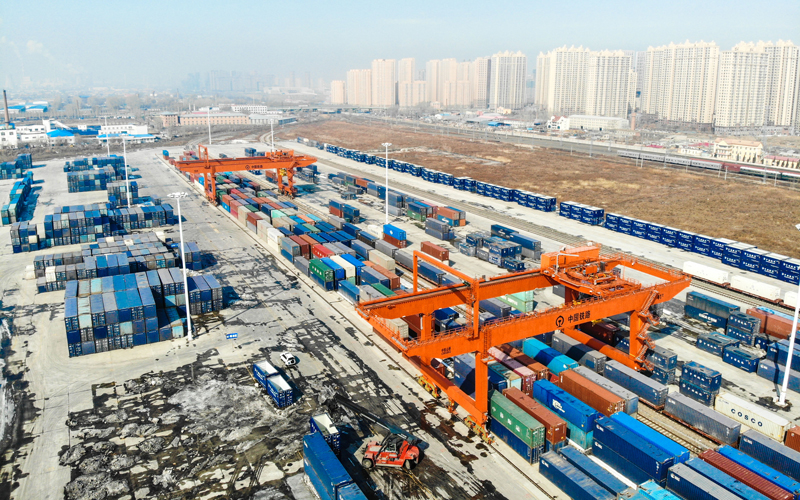

• 3. Shipping Ports & Container Terminals

• 4. Canteiros de obras (precast concrete, steel erection)

• 5. Logística & Freight Yards

• 6. Usinas Elétricas & Substations

• 7. Railway Maintenance Depots

• 8. Scrap Yards & Recycling Facilities

• 9. Anywhere requiring heavy, precise, and eco-conscious lifting.

Why Choose Weihua Electric Gantry Crane?

• 1. Global Leader: Decades of experience and a proven track record in crane manufacturing.
• 2. Engineering Excellence: Cutting-edge R&D and stringent quality control processes.
• 3. Full Customization: Solutions tailored precisely to your operational needs and site constraints.
• 4. Superior Quality Components: Utilizes reputable brands for motors, drives, controls, and electrical gear.
• 5. Competitive Value: High performance and durability at a compelling price point.
• 6. Comprehensive Support: Global network for installation, commissioning, maintenance, spare parts, and technical assistance.
• 7. Commitment to Sustainability: Electric cranes are a core part of providing greener material handling solutions.

Upgrade your material handling efficiency and sustainability. Contact Weihua today for a detailed quote and engineering consultation on the perfect Electric Gantry Crane solution for your business!
